Diligent::ShaderVariableD3D12Impl Class Reference

#include <ShaderVariableManagerD3D12.hpp>

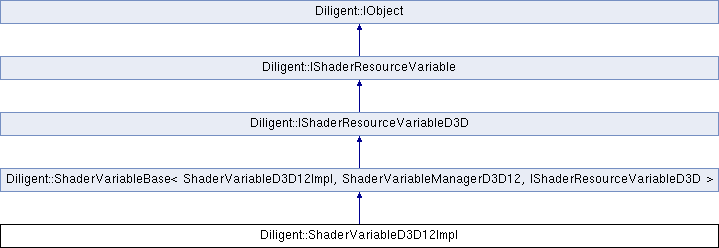

Inheritance diagram for Diligent::ShaderVariableD3D12Impl:

Public Types
using	TBase = ShaderVariableBase< ShaderVariableD3D12Impl, ShaderVariableManagerD3D12, IShaderResourceVariableD3D >

Public Member Functions
	ShaderVariableD3D12Impl (ShaderVariableManagerD3D12 &ParentManager, Uint32 ResIndex)
	ShaderVariableD3D12Impl (const ShaderVariableD3D12Impl &)=delete
	ShaderVariableD3D12Impl (ShaderVariableD3D12Impl &&)=delete
ShaderVariableD3D12Impl &	operator= (const ShaderVariableD3D12Impl &)=delete
ShaderVariableD3D12Impl &	operator= (ShaderVariableD3D12Impl &&)=delete
virtual void	QueryInterface (const INTERFACE_ID &IID, IObject **ppInterface) override final
virtual bool	IsBound (Uint32 ArrayIndex) const override final
virtual void	GetHLSLResourceDesc (HLSLShaderResourceDesc &HLSLResDesc) const override final
const PipelineResourceDesc &	GetDesc () const
void	BindResource (IDeviceObject *pObj, Uint32 ArrayIndex) const
Public Member Functions inherited from Diligent::ShaderVariableBase< ShaderVariableD3D12Impl, ShaderVariableManagerD3D12, IShaderResourceVariableD3D >
	ShaderVariableBase (ShaderVariableManagerD3D12 &ParentManager, Uint32 ResIndex)
virtual Atomics::Long	AddRef () override final
virtual Atomics::Long	Release () override final
virtual IReferenceCounters *	GetReferenceCounters () const override final
virtual void	Set (IDeviceObject *pObject) override final
virtual void	SetArray (IDeviceObject *const *ppObjects, Uint32 FirstElement, Uint32 NumElements) override final
virtual SHADER_RESOURCE_VARIABLE_TYPE	GetType () const override final
virtual void	GetResourceDesc (ShaderResourceDesc &ResourceDesc) const override final
virtual Uint32	GetIndex () const override final
void	BindResources (IResourceMapping *pResourceMapping, Uint32 Flags)
const PipelineResourceDesc &	GetDesc () const
Public Member Functions inherited from Diligent::IShaderResourceVariable
virtual SHADER_RESOURCE_VARIABLE_TYPE METHOD()	GetType () const
	Returns the shader resource variable type. More...
virtual Uint32 METHOD()	GetIndex () const
	Returns the variable index that can be used to access the variable. More...
Public Member Functions inherited from Diligent::IObject
virtual IReferenceCounters *	GetReferenceCounters () const =0
	Returns the pointer to IReferenceCounters interface of the associated reference counters object. The method does NOT increment the number of strong references to the returned object. More...

Additional Inherited Members
Protected Attributes inherited from Diligent::ShaderVariableBase< ShaderVariableD3D12Impl, ShaderVariableManagerD3D12, IShaderResourceVariableD3D >
ShaderVariableManagerD3D12 &	m_ParentManager
const Uint32	m_ResIndex

Member Typedef Documentation

TBase

using Diligent::ShaderVariableD3D12Impl::TBase = ShaderVariableBase<ShaderVariableD3D12Impl, ShaderVariableManagerD3D12, IShaderResourceVariableD3D>

Constructor & Destructor Documentation

ShaderVariableD3D12Impl() [1/3]

Diligent::ShaderVariableD3D12Impl::ShaderVariableD3D12Impl ( ShaderVariableManagerD3D12 &  ParentManager, Uint32  ResIndex  )

inline

ShaderVariableD3D12Impl() [2/3]

Diligent::ShaderVariableD3D12Impl::ShaderVariableD3D12Impl ( const ShaderVariableD3D12Impl &  )

delete

ShaderVariableD3D12Impl() [3/3]

Diligent::ShaderVariableD3D12Impl::ShaderVariableD3D12Impl ( ShaderVariableD3D12Impl &&  )

delete

Member Function Documentation

BindResource()

void Diligent::ShaderVariableD3D12Impl::BindResource ( IDeviceObject *  pObj, Uint32  ArrayIndex  ) const

inline

GetDesc()

const PipelineResourceDesc& Diligent::ShaderVariableD3D12Impl::GetDesc ( ) const

inline

GetHLSLResourceDesc()

virtual void Diligent::ShaderVariableD3D12Impl::GetHLSLResourceDesc ( HLSLShaderResourceDesc &  HLSLResDesc ) const

inlinefinaloverridevirtual

Implements Diligent::IShaderResourceVariableD3D.

IsBound()

virtual bool Diligent::ShaderVariableD3D12Impl::IsBound ( Uint32  ArrayIndex ) const

inlinefinaloverridevirtual

Reimplemented from Diligent::IShaderResourceVariable.

operator=() [1/2]

ShaderVariableD3D12Impl& Diligent::ShaderVariableD3D12Impl::operator= ( const ShaderVariableD3D12Impl &  )

delete

operator=() [2/2]

ShaderVariableD3D12Impl& Diligent::ShaderVariableD3D12Impl::operator= ( ShaderVariableD3D12Impl &&  )

delete

QueryInterface()

virtual void Diligent::ShaderVariableD3D12Impl::QueryInterface ( const INTERFACE_ID &  IID, IObject **  ppInterface  )

inlinefinaloverridevirtual

Reimplemented from Diligent::ShaderVariableBase< ShaderVariableD3D12Impl, ShaderVariableManagerD3D12, IShaderResourceVariableD3D >.

---

The documentation for this class was generated from the following file:

• Graphics/GraphicsEngineD3D12/include/ShaderVariableManagerD3D12.hpp
